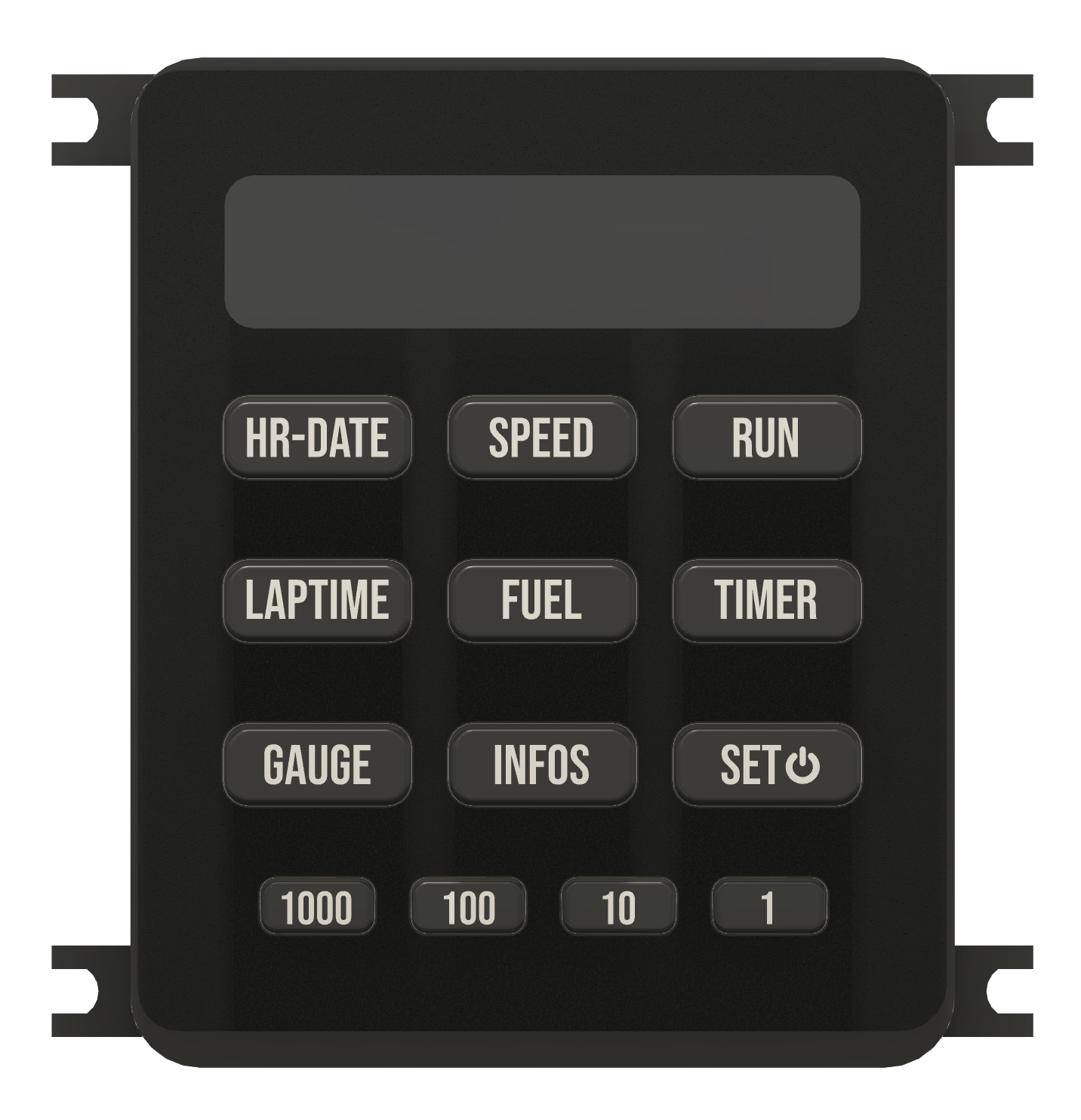

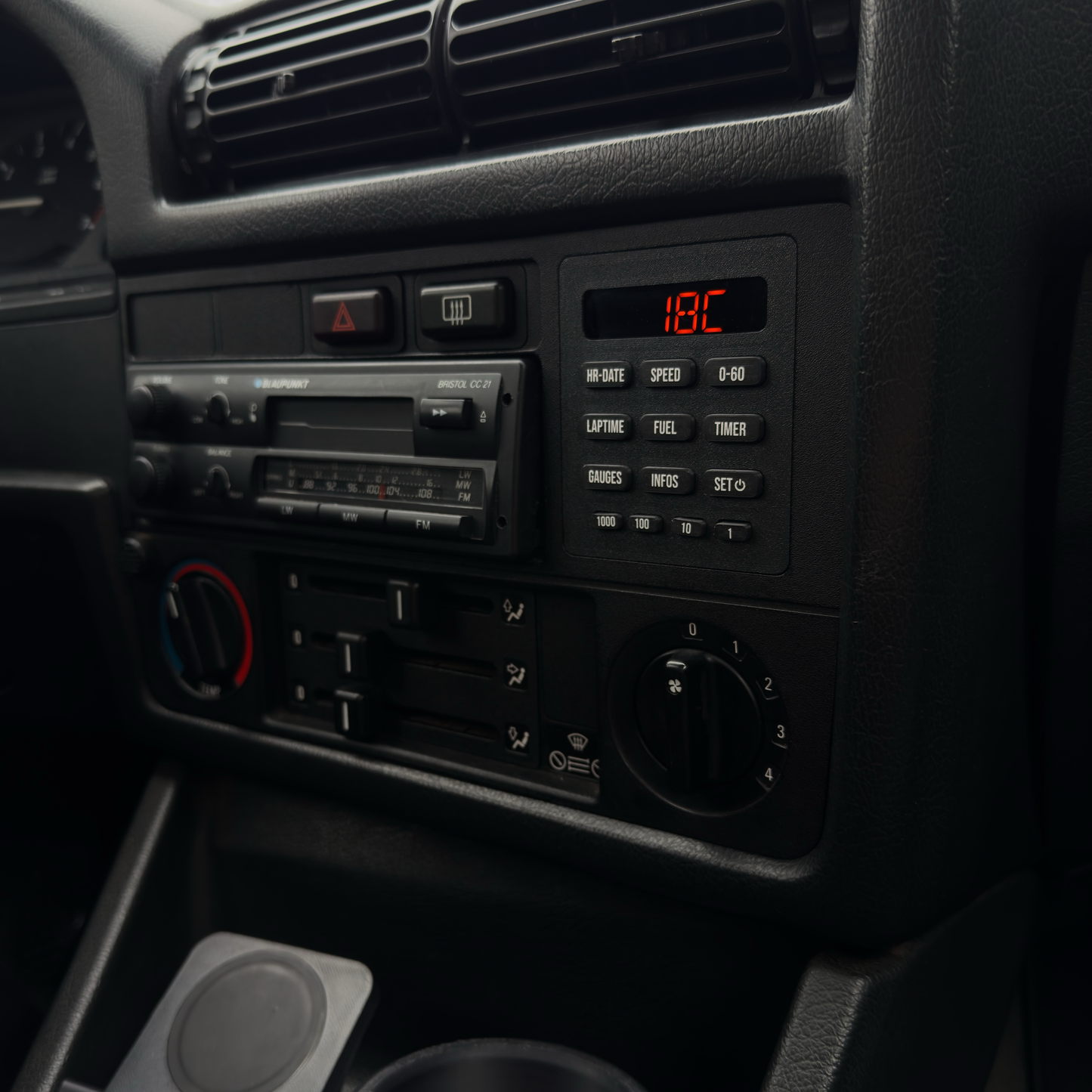

The OBC v2.0 is a modern take on the original on-board computer found in premium BMWs of the late 80s. It replicates most of the original functions and adds performance-oriented features, while maintaining its retro aesthetics.
Supported Functions:
⏱️ Time/Date, Timer
🏁 Lap, 0-60, and 1/4 mile GPS based timers, G-Sensor
💨 GPS Speed and overspeed alarm
⛽ Consumption, range, and remaining fuel
🛣️ Trip odometer
🌡️ Oil temperature and pressure with overheat alarm
🌦️ Outdoor temperature
⚡ Voltmeter
🛰️ Heading and altitude
Other Features:

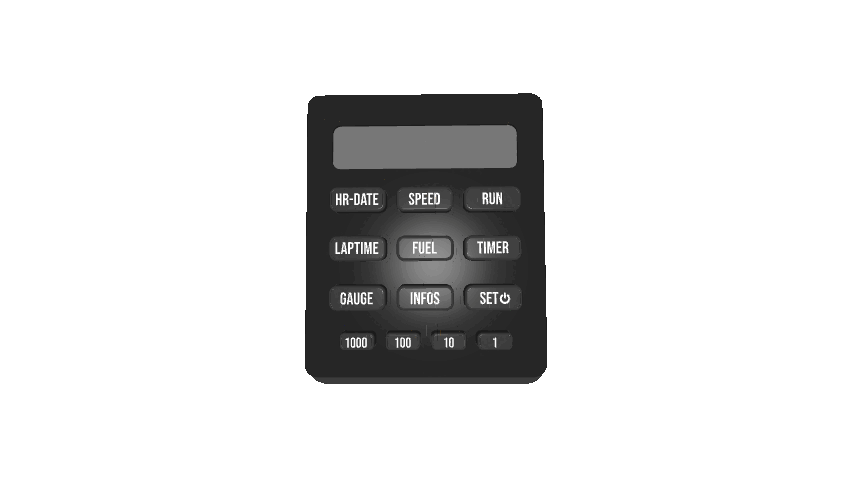

💡 Backlit keyboard linked to car headlights

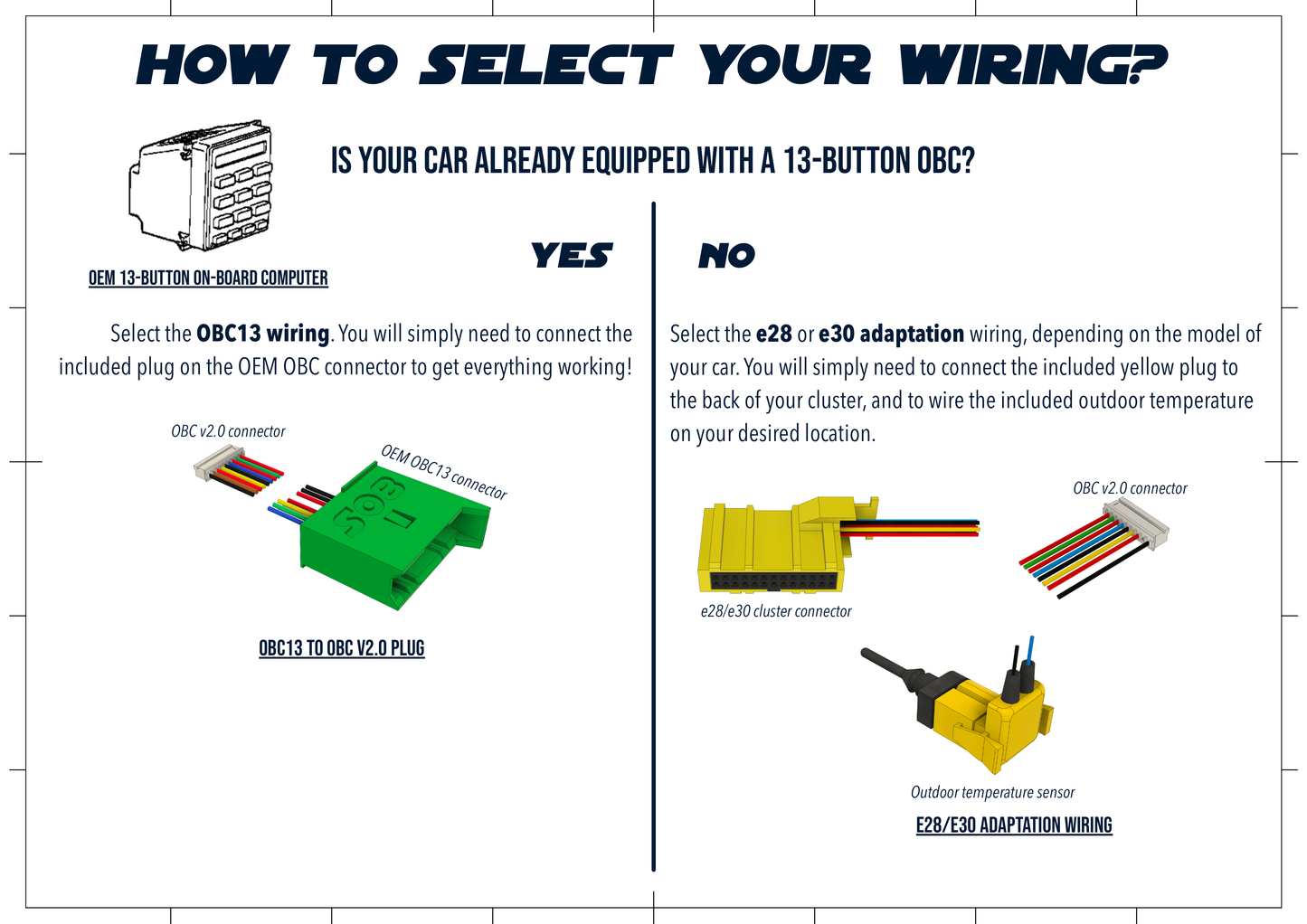

🔌 Fits any E30; full support for OEM clock or on-board computer (OBC6/OBC13) wiring – choose the correct wiring when ordering (see picture)
↕️ Function browsing via the turn signal stalk button
🛜 WiFi connectivity for wireless software updates

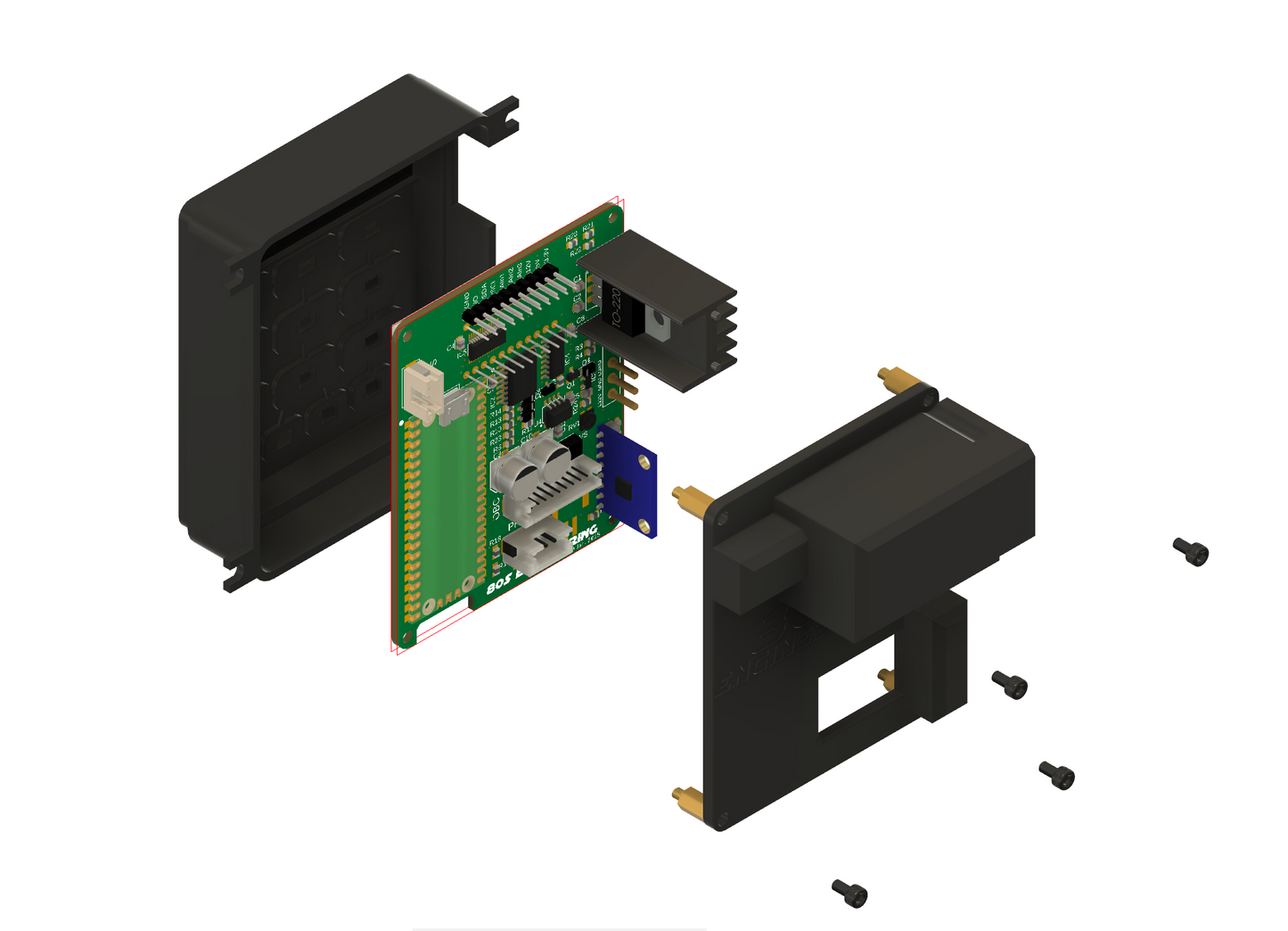

👾 Open-source software with accessible I/Os, power supplies, and analog input for custom sensor/controller integration
⚙️ 3D printed in textured ASA for an OEM look and long-lasting finish

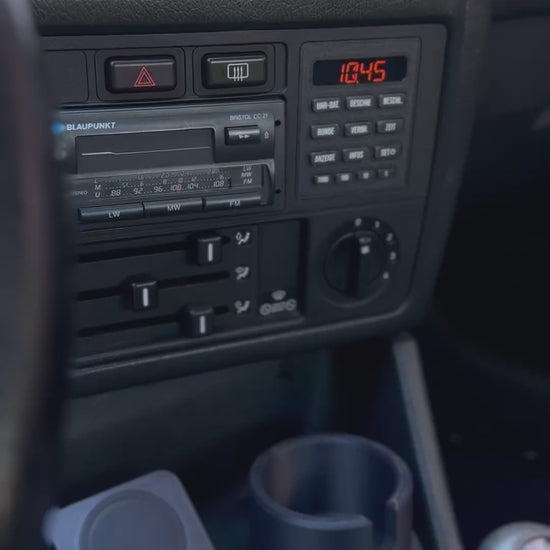

🌍 Available in English, German, and French with full translations
✨ Loads of hidden features

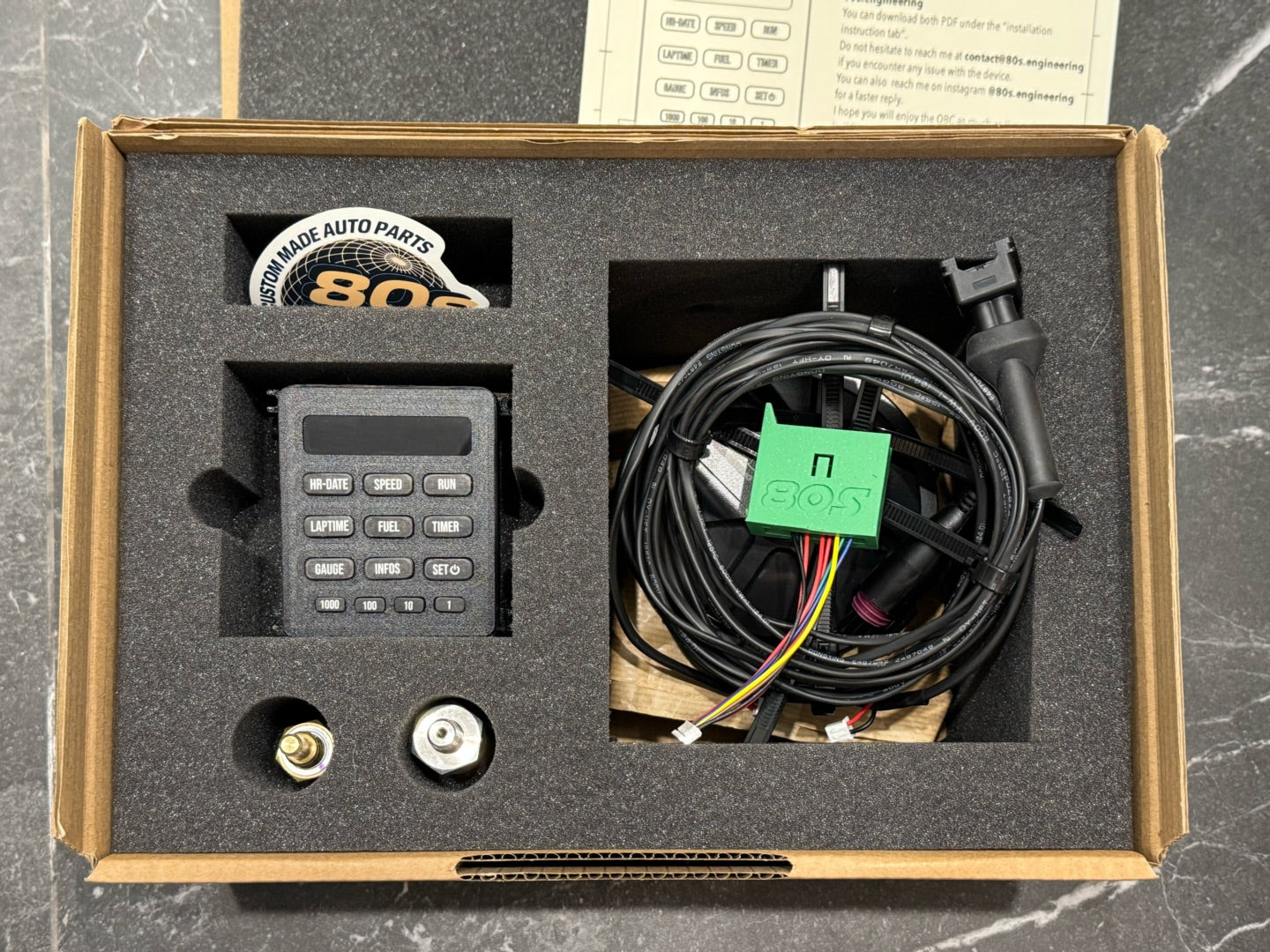

Included in the Package:
📦 On-board computer
🌡️ Optional M12x1.5 temperature and 1/8NPT pressure sensor with wiring

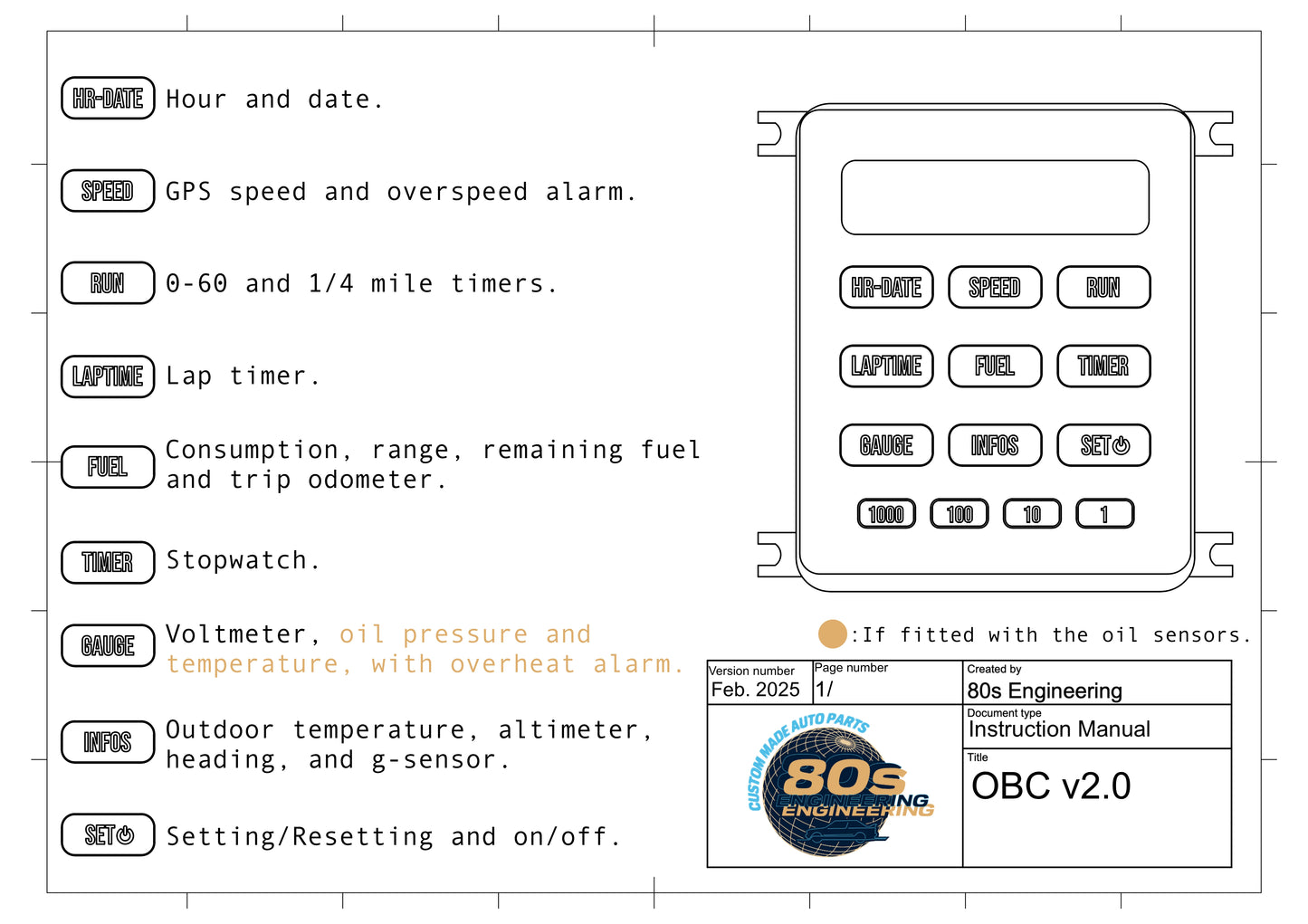

📄 PDF instructions for installation and operation
Disclaimer:
⚠️ A sensor mount is required to install the optional temperature/pressure sensors on your engine (available in my store).
⛽ Fuel-related functions are accessible only if your car has an OEM on-board computer wiring loom.
🌦️ Outdoor temperature is not available on analog clock-equipped cars.
